Thickness of material removed is in range of 025 to 050 mm. The grinding wheel consists of sharp crystals called abrasives held together by suitable bonding.

Grinding Process

PPT ON THERMAL POWER PLANT POLLUTION CONTROLLED.

. Ppt pedestal grinding machine Use of Portable Grinders OSH Answers Use of Portable Grinders CLOSE ALL Ensure that a machine will not operate when unattended by checking the dead-man constant pressure switch Right-angle grinder the grinding face of the wheel or disc is at an angle of between 5 and 15 degrees from. The abrasive surface of the wheel helps in cutting the small parts of work piece. GMM530 Double Side Surface Grinding Machine.

Surface Grinding Machine Ppt - manufacturer factory supplier from China Total 24 Products for Surface Grinding Machine Ppt Sweet Potato Arrowroot Starch Making Machine. There are many numerous grinding manufacturers in India who offer high-quality advanced customized and affordable grinding machines or equipment to clients in diverse industries. It is basically a finishing process employed to produce high accuracy and surface finish.

The speed is determined by the wheels diameter and manufacturers rating. Grinding machines 2 Grinding. PowerPoint PPT presentation free to view ONSITE CRANKSHAFT GRINDING MACHINE 1 - in situ crankshaft grinding portable crankshaft grinder onsite crankshaft grinding machine crankshaft grinder machine Email us.

Is suitable for unmachined clearance areas on rough construction items. See Figures O-12 and O-13. Precision grinder Cylindrical surface internal tool cutter disc thread cam shaft grinder 4.

Grinding is a surface finishing operation where very thin layer of material is removed in the form of dust particles. A surface Grinding Machine is a machine in which a grinding wheel is used as a cutting tool for removing the material from the surface of the workpiece. Vibratory Tumblers Deburring and Burrs.

Grinding Machineppt - Grinding Machines Grinding Grinding is a surface finishing operation where very thin layer of material is removed in the form Grinding Machineppt - Grinding Machines Grinding. The grinding machine is used for 1. It is also called an abrasive machining process where abrasives are placed on the surface and corners of the grinding wheel so as to do the finishing process with much more accuracy.

The user can control the grinding head to travel across a fixed work. Roughing and finishing flat cylindrical and conical surfaces. Sweet potato arrowroot starch making machine cassava starch machine product model SFJ 600 circle SFJ 700 circle SFJ 600 square SFJ 700 square SMJ 800 Weight Main Unit.

Finishing internal cylinders or bores. Abrasive is the material employed for sharpening. China Surface Grinding Machine Ppt Manufacture Visit Here to Find the Surface Grinding Machine Ppt That You are Searching for.

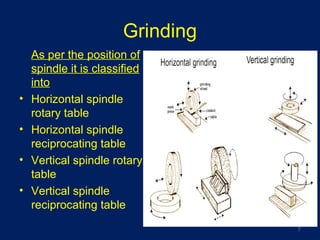

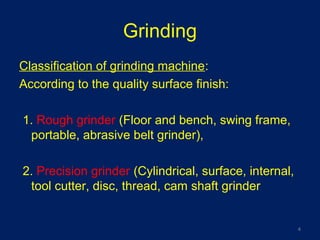

Rough grinder Floor and bench swing frame portable abrasive belt grinder 2. Thus grinding is a diverse field. Introduction A grinding machine often shortened to grinder is any of various power tools or machine tools used for grinding which is a type of machining using an abrasive wheel as the cutting tool.

A surface Grinding Machine is a machine in which a grinding wheel is used as a cutting tool for removing the material from the surface of the workpiece. Chuck Last modified by. According to the quality surface finish.

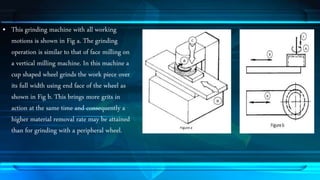

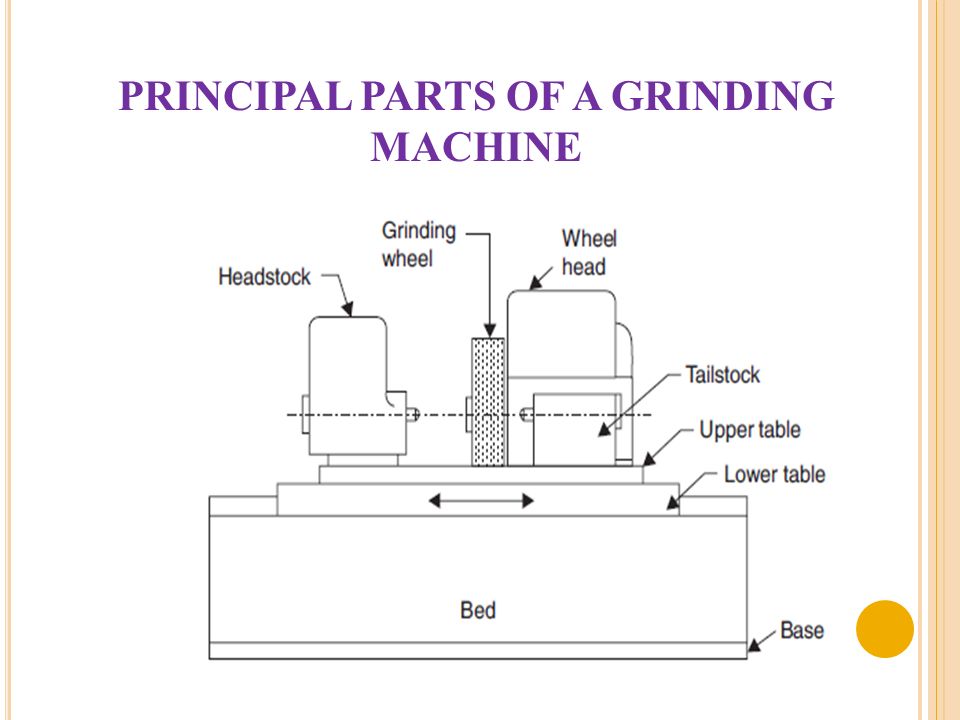

A grinding wheel rotates 1750 rpm and has a surface speed of 2290 ftmin. Wheel head provides power to the grinding wheel supports the mechanism providing vertical cross movement to the wheel. Surface grinding machine generally consists of a base table wheel head and mechanism for providing motion to wheel work piece in desired direction.

A grinding disc is a sharp cutting tool with thousands of cutting edges on the side of the surface. The maximum angular exposure of the grinding wheel periphery and sides for safety guards used on cutting-off machines and on surface grinding machines which employ the wheel periphery shall not exceed 150 deg. According to the quality surface finish.

View Grinding machines PowerPoint PPT. These fragments can also be found as a groundsheet bonded spokes and polished belts. Grinding Machine Grinding is a material removal process accomplished by abrasive particles that are contained in a bonded grinding wheel rotating at very high surface speeds.

Below the horizontal plane of the wheel spindle. School Nirma University Ahmedabad Course Title MECHANICAL 123 Uploaded By 18bme098 Pages 103 This preview shows page 1 - 15 out of 103 pages. What can I do for you.

Tool used is a abrasive wheel. The grinding machine is used for 1. 3 No Transcript 4 No Transcript 5 Abrasives.

An abrasive is a material whose particles are extremely hard and can be used to machine materials such as hardened steel glass carbides ceramics etc. Surface Grinding Machine Types Ppt Trinity Trade. Surface grinding machine This machine may be similar to a milling machine used mainly to grind flat surface.

Ppt Pedestal Grinding Machine Magazene. TYPES OF CYLINDRICAL GRINDING MACHINE This machine is used to produce external cylindrical surface. Applications of Abrasive Grinding Wheels - Abrasive cutting also known as grinding is the process of removing steel from small chips with irregularly formed abrasive particles.

This exposure shall begin at a point not less than 15 deg. The grinding machine consists of a bed with a fixture to guide and hold the work piece and a power-driven grinding wheel spinning at the required speed. Surface Grinding PowerPoint PPT Presentations.

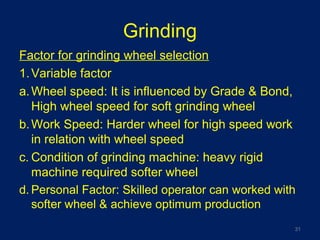

It is also known as a grinder. Allow machine to cool before storage. Grinding wheels come in handy for a variety of grinding and machining tasks.

The rotating grinding wheel consists of many cutting teeth abrasive particles and the work is fed relative to the rotating grinding wheel to accomplish material removal. Guide to Surface and Cylindrical. Grinding Machine Ppt Linkedin Slideshare.

Grinding is a metal removal process by the action of a rotating abrasive wheel. Flat Angular Irregular surfaces 8. Grinding Classification of grinding machine.

The table holds the work piece and provides necessary feed. Small abrasive grains are tied together by a binding film in grinding wheels. 452005 55045 PM Document presentation format.
